PICKUP SPECIFICATIONS
HOW EVANS IMPROVED ON THE
ORIGINAL
| Model |
E1CL |
E1HL |
E1R |
E1HR |
| DC Resistance (Ohms) |
14K |
18K |
12K |
14K |
| Signal to Noise
|
-55dB |
-55dB |
-55dB |
-55dB |
| Peak Resonance
|
7K |
6K |
8K |
7K |
|

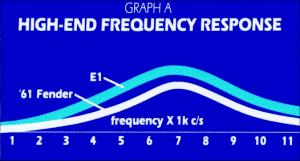

FREQUENCY RESPONSE |
|
Compare the response curve for
the classic ’61 Strat* sound (white line) to the Eliminator tone
output. |
|
|
|
That’s right. They’re the
same! You get that same golden tone but with a difference. No noise and
more output. |
|

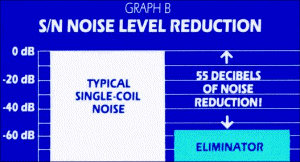

S/N NOISE LEVEL REDUCTION |
|
Now, compare the amount
of noise generated by the ’61 Strat* pickup to the Eliminator (Graph B).
|
|
|
|
There’s that difference. No
more noise. The Eliminator has virtually “eliminated” the noise
entirely.You get the same single-coil sound without the noise, scratch and
hiss. |
Eliminator pickups will give
you the quietest single-coil sound ever!
You can count on it!
* Fender and Strat are
Registered Trademarks of Fender Musical Instruments Corp.
In no way is Evans
Guitar Products affiliated with Fender.
